DB Series

Members only

DB series are suitable for pumping clean water. They are particularly suitable for domestic applications such as Water supply from wells and pools, pressure boosting, garden sprinkling, washing booths..

Working Conditions

Max Temperature of Fluid up to +80℃

Max Pressure 10bar,

Max Ambient Temperature up t 40℃

Should be installed in a covered area, protected against the weather.

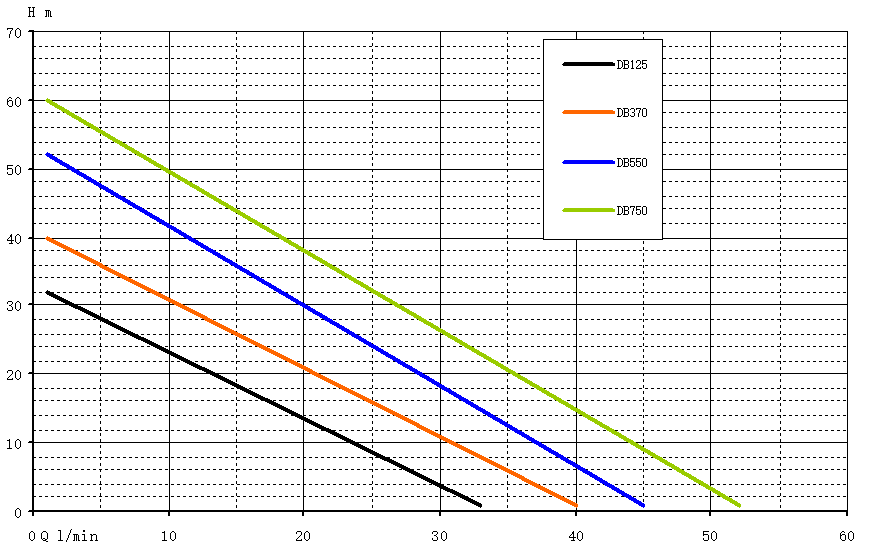

Type 型　号	OutPutPower 输出功率		Current 电流 A	Capacitor 电容器 μF	H max 最高扬程m	Q max 最大流量 l/min	Size 进出口径	S.Head 最大吸程 M	*MHNU 最高使用扬程m	Total head－总扬程 m	Capacity－流量 l/min
Type 型　号	kW	HP	Current 电流 A	Capacitor 电容器 μF	H max 最高扬程m	Q max 最大流量 l/min	Size 进出口径	S.Head 最大吸程 M	*MHNU 最高使用扬程m		10	15	20	25	30	35	40	50
DB125	0.22	0.3	1.5	8	32	33	1”X1”	9	22		22.5	18	14	8	4
DB370	0.37	0.5	2.4	12	41	40	1”X1”	9	25		31	26	21	16	11	6	1
DB550	0.55	0.75	3.7	16	52	45	1”X1”	9	30		41.8	36	30	14	18	13	6.5
DB750	0.75	1	4.6	20	62	53	1”X1”	9	38		49.5	44	38	32	26	20	14.5	3

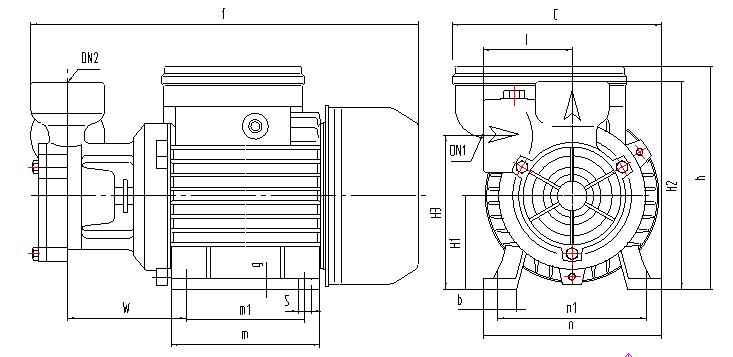

Type 型　号	Dimensions －外形尺寸mm															Weight 重量kg		PackingSize 包装尺寸mm			PackingQTY.包装数量
Type 型　号	H3	f	h	c	H1	H2	i	m	m1	n	n1	w	b	g	s	NW	GW	L	W	H	E.pallet 欧式托盘	20’Cont 20’柜
DB125	104	262	151	141	63	140	60	100	80	120	100	80	23	8	9	4.4	4.9	280	160	180		3300
DB370	104	262	151	141	63	140	60	100	80	120	100	80	23	8	9	5.2	5.7	280	160	180		3200
DB550	122	263	170	155	71	157	69	110	90	135	112	77	25	9	10	10.6	11.4	310	170	200		1800
DB750	122	263	170	155	71	157	69	110	90	135	112	77	25	9	10	11.4	12.2	310	170	200		1800

File Download

IDBDB.pdf

Download Preview
